Di Noer company Developed a new type of disinfection unites to produce disinfection liquid which contains hypochlorous acid as active agent.
Hypochlorous acid generator is an eco-friendly electrolyzed water generator to produce electrolyzed solution for sterilization through the electrolysis of salt water.
Product Description
Di Noer company Developed a new type of disinfection unites to produce disinfection liquid which contains hypochlorous acid as active agent. Hypochlorous acid generator is an eco-friendly electrolyzed water generator to produce electrolyzed solution for sterilization through the electrolysis of salt water.
Hypochlorous acid or HOCI is harmless which are effective against fungi, bacteria and viruses have already been identified. It’s get an Realizable way to destroy biofilms and preventing Legionella and Pathogenic Bacteria.With this generator unit you will not only have the effective technology available for bacterial control in water and environment, you will also have the safest solution.
Technology Comparison
The comparison between traditional technology and our new technology:
Traditional technology comes with many drawbacks, including:
Complex dosing methods;
Complicated monitoring;
Mixing&storage of chemicals;
Handling of hazardous chemistry;
Occupy a large area, need for useful Protective during operation and complex daily maintenance.
Characteristics of the new type of disinfection generator:
It dose not require shipping, storage, handling or mixing of chemicals, and doesn’t disintegrate;
Produced on-site, ready to use;

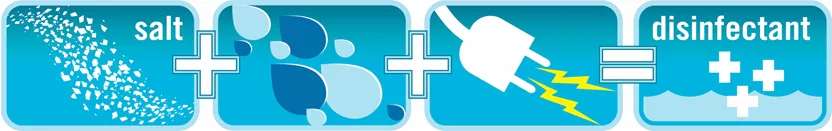

This generator from Natural and ECO-friendly ingredients, all they need is salt, water and electricity;
With this new disinfectant liquid generator from Di-nore, you get a completed solution, It can reduce transportation and installation costs;
Produce 1 to 1000ppm of hypochlorous acid disinfection with adjustable concentration.
|  |
Constituent Part

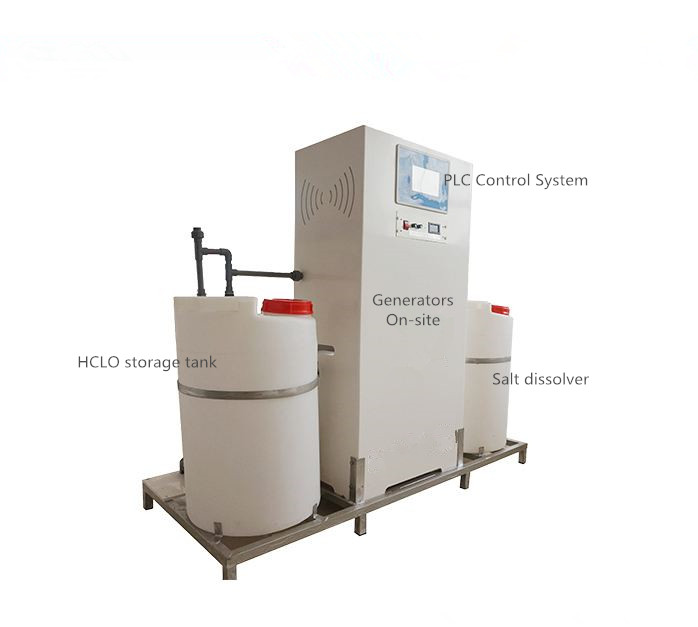

The main Components of the hocl disinfectant generator:
Diaphragm Electrolyzer Cell
Salt Dissolver Tank

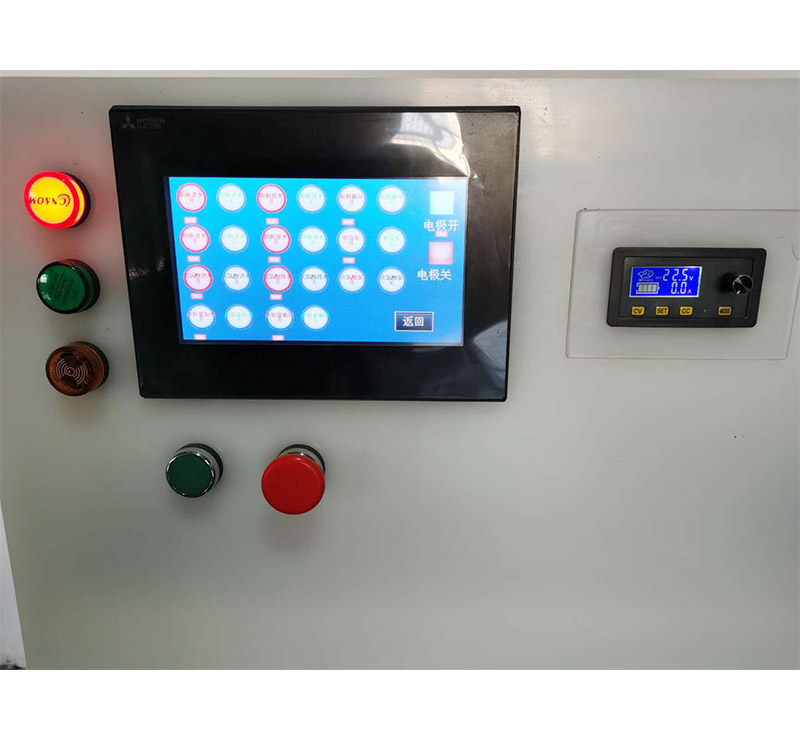

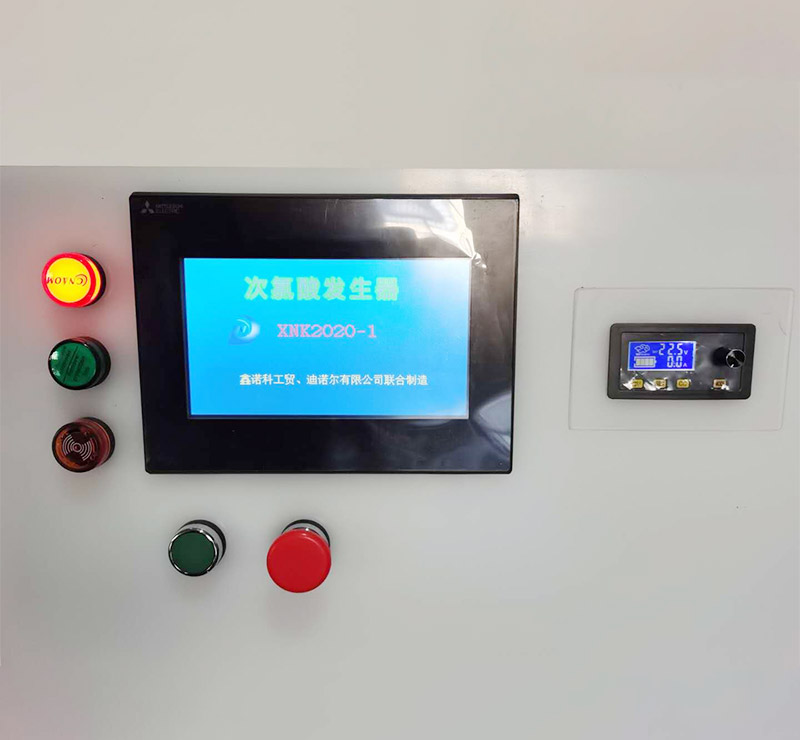

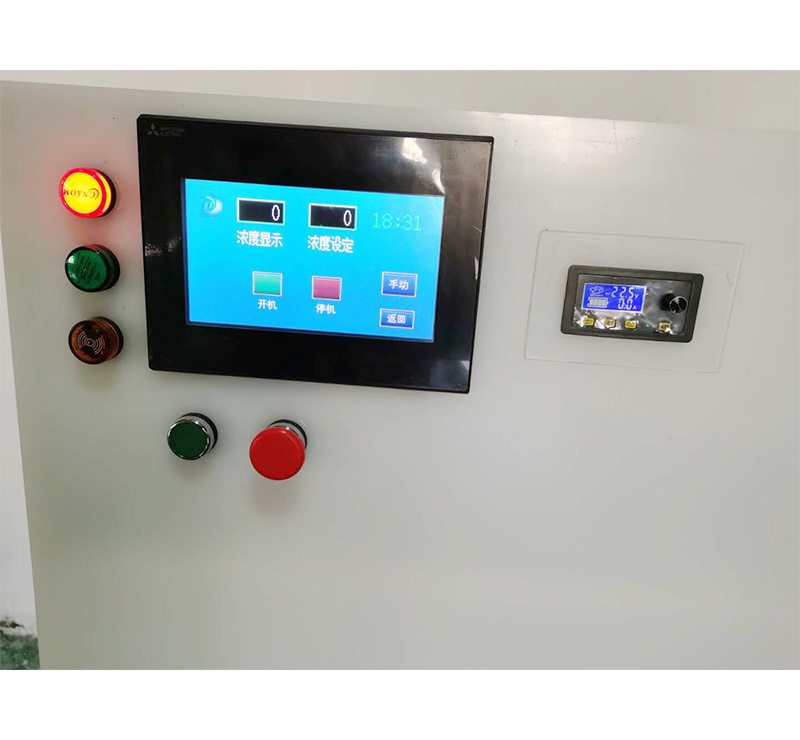

PLC Control System
Power Supply
Storage Tank

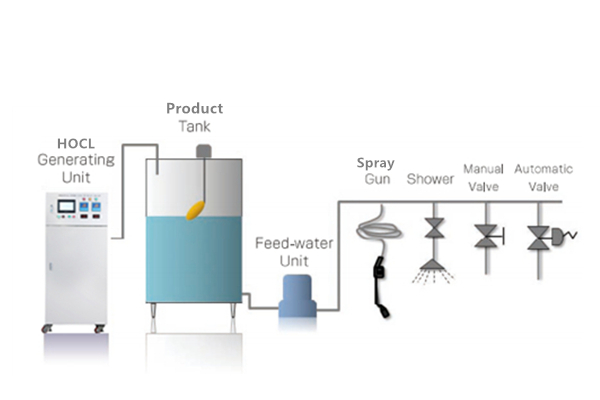

Application
1.Food purification and disinfection
2.Livestock and poultry farming
3.Drinking water
4.Dental hospital disinfection
5.The swimming pool
6.The cooling tower
7.The health care industry
8.Waste-water treatment
9.Air disinfection
10.Environment sterilizationand disinfection, etc.
Specifications
| Model | DN-H50 | DN-H100 | DN-H300 |
| Water Flow Rate(LPH) | 25L/H | 30L/H | 40L/H |
| Chlorine concentration | 50ppm±5（0-50mg/L） | 0-100ppm（0-100mg/L） | 0-300ppm（0-300mg/L） |
| Brine concentration | Saturated salt water | Saturated salt water | Saturated salt water |
| Input water | Tap water | Tap water | Tap water |
| PH | 2.7-3.5 | 2.7-3.5 | 2.0-3.0 |
| DC/V | 24V | 24V | 36V |
| DC | 50A | 100A | 300A |
| Rated Power | 200W | 300W | 1.5KW |
| Current efficiency | 1.32 | 1.32 | 1.32 |
| Feed Water Temperature | 40° to 95° F 0° to 40° C | 40° to 95° F 0° to 40° C | 40° to 95° F 0° to 40° C |
| Air Temp. Required | 45° to 115° F 7° to 46° C | 45° to 115° F 7° to 46° C | 45° to 115° F 7° to 46° C |
| Water pressure | 0.1 ~ 0.3MPa | 0.1 ~ 0.3MPa | 0.1 ~ 0.3MPa |
| Approximate Dimensions (WxDxH) | 650×420×1300mm | 750×450×1300mm | 850×500×1600mm |
| Salt tank capacity | 20L/material：PP | 30L/material：PP | 35L/material：PP |
| Storage tank capacity | 25L/material：PP | 30L/material：PP | 40L/material：PP |
| Other configuration | PLC automatic program, LCD touch Screen operationLCD touch screen Manual control | ||
